7.3L Ford Powerstroke Stage 2 Engine Overhaul Kit – 1994–2003

Complete Performance Engine Rebuild Package for Hot Street, Strip & Competition Builds

Build your 7.3L Powerstroke for serious performance with the Stage 2 Engine Overhaul Kit. Designed for 1994–2003 Ford 7.3L Powerstroke engines, this comprehensive package combines upgraded pistons, bearings, valvetrain components, and a Stage 2 billet camshaft into one performance-focused engine rebuild kit.

The Stage 2 package is intended for modified engines running 230cc or larger injectors and an upgraded turbocharger. When combined with the proper supporting modifications and tuning, this package is designed to provide gains of 60+ horsepower and 100+ ft-lbs of torque over stock, along with improved turbo response and reduced EGTs.

This package is intended for performance applications and is not recommended for heavy towing.

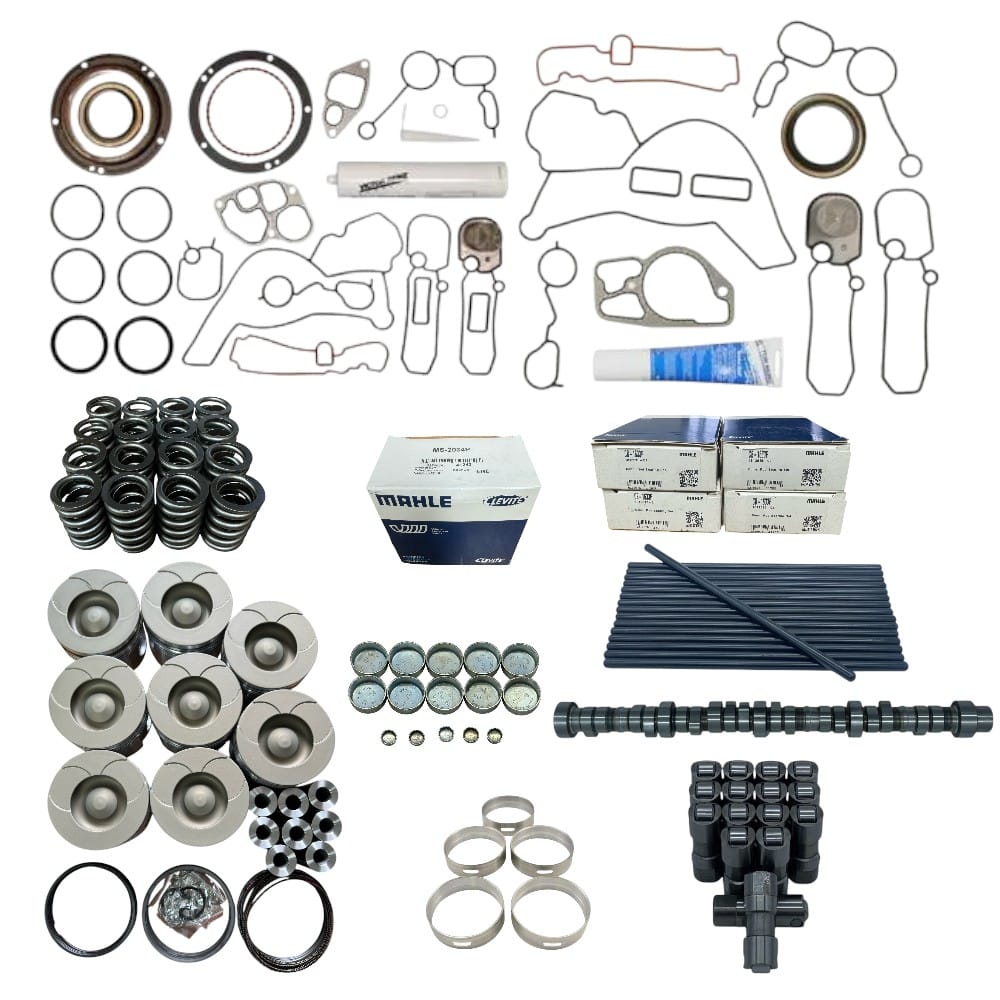

Complete Kit Includes

Pistons & Rotating Assembly Components

• Eight (8) new pistons

• Eight (8) wrist pins

• Sixteen (16) piston pin locks

• Eight (8) piston ring sets

• .035" fly-cut valve pockets

• Optional ceramic-coated piston tops

• Optional de-lipped fuel bowls

Available Piston Sizes:

• STD

• .020"

• .030"

• .040"

Bearing Package

The kit includes Clevite rod and main bearings along with new cam bearings for a complete engine overhaul.

Rod & Main Bearing Sizes:

• STD

• .010"

• .020"

Also available:

• Cam bearings

• Optional freeze plug kit

Stage 2 Valvetrain Components

A complete performance valvetrain package is included to complement the Stage 2 camshaft.

• One-piece billet chromalloy pushrods

• Complete heavy-duty lifter set

• 120 lb high-rev valve springs

• COMP Cams 910-16 valve springs

• Stage 2 billet camshaft

Stage 2 Billet Camshaft

The included Stage 2 camshaft is manufactured from high-grade 4130 billet steel and designed for hot street, strip, and competition applications.

The performance-oriented profile increases lift and duration while optimizing valve timing for improved airflow, torque, horsepower, turbo response, and overall engine performance.

Camshaft Features:

• High-grade 4130 billet steel construction

• Stage 2 performance profile

• Increased lift and duration

• Designed for hot street and competition applications

• Drop-in design

• Lifetime replacement warranty

OBS Fuel System Notice

1994–1997 OBS 7.3L Powerstroke trucks require an electric fuel pump conversion.

The Stage 2 camshaft does not have the eccentric lobe required to operate the factory mechanical fuel pump. An electric fuel system such as an AirDog, FASS, or equivalent setup will be required.

Optional Ceramic-Coated Pistons

Ceramic coating is available for the piston crowns to provide an additional thermal barrier for demanding performance applications.

Ceramic-coated or otherwise machined pistons are non-exchangeable. Be certain of the required piston size before ordering.

Optional De-Lipped Fuel Bowls

Piston fuel bowl de-lipping is available for race-oriented engine combinations.

Important: De-lipped fuel bowls are intended for race applications and may result in additional fuel haze during cold starts and idle.

Designed for Performance Builds

This Stage 2 overhaul kit is best suited for:

• Hot street trucks

• Drag racing applications

• Competition builds

• High-horsepower 7.3L Powerstrokes

• 230cc+ injector combinations

• Upgraded turbocharger applications

• Complete performance engine rebuilds

This kit is not recommended for heavy towing applications.

Piston Sizing – Read Before Ordering

Your engine block must be inspected and the cylinder bores measured by a qualified machine shop before ordering pistons.

Do not select an oversize piston based on assumptions about cylinder wear. The machine shop should determine the required final bore size before the piston size is selected.

Changes to piston size after an order has been processed may result in additional restocking and shipping fees.

Ceramic-coated or machined pistons cannot be exchanged, making accurate cylinder measurements especially important before ordering.

Key Features

• Fits 1994–2003 Ford 7.3L Powerstroke

• Complete Stage 2 performance engine overhaul package

• Eight new pistons with rings, pins, and locks

• .035" fly-cut valve pockets

• STD, .020", .030", and .040" piston options

• Optional ceramic-coated piston crowns

• Optional de-lipped fuel bowls

• Clevite rod and main bearings

• STD, .010", and .020" bearing options

• New cam bearings

• Optional freeze plug kit

• One-piece billet chromalloy pushrods

• Heavy-duty lifters

• 120 lb COMP Cams high-rev valve springs

• 4130 billet Stage 2 camshaft

• Designed for 230cc+ injectors

• Designed for upgraded turbocharger combinations

• Intended for hot street, strip, and competition applications

• Includes DDPM T-shirt – select size when ordering

Shipping Information

Free ground shipping is included to the lower 48 United States.

Free shipping does not apply to:

• Alaska

• Hawaii

• Puerto Rico

Customers in these locations should contact the seller before ordering to receive a shipping quote.

For builders looking to take a 7.3L Powerstroke beyond a standard rebuild, the Stage 2 Engine Overhaul Kit combines the rotating assembly and valvetrain components needed to create a performance-focused engine package capable of supporting larger injectors, upgraded turbochargers, and serious horsepower.

Professional engine machining and assembly are strongly recommended. Always verify piston-to-wall clearance, piston-to-valve clearance, bearing clearances, valve spring installed height, and all other critical engine clearances during assembly.
