7.3L Powerstroke Stage 1 Valvetrain Package – 1994–2003
Complete Performance Valvetrain Upgrade for Street, Towing & Performance Builds
Upgrade your 7.3L Ford Powerstroke with the Stage 1 Valvetrain Package, a complete combination designed to improve performance, valvetrain stability, and durability while maintaining excellent street manners.
This package combines a 4130 billet Stage 1 camshaft, upgraded valve springs, billet pushrods, and heavy-duty lifters into one complete valvetrain solution. It's an excellent choice for daily-driven trucks, tow rigs, performance street builds, and complete engine rebuilds.
Stage 1 Billet Camshaft
The Stage 1 camshaft is manufactured from high-quality 4130 billet steel and features a performance-oriented profile designed to improve the operating characteristics of the 7.3L Powerstroke.
The increased lift and duration are designed to improve airflow and provide gains in torque, horsepower, turbo response, and overall engine efficiency.
Camshaft Specs:
-
Duration: 186° Intake / 195° Exhaust
-
Valve Lift: .430" Intake / .433" Exhaust
-
Manufactured from 4130 billet steel
-
Designed for street and performance applications
-
Compatible with factory and aftermarket tuning
-
Direct drop-in design
-
Lifetime replacement warranty
High-Rev Valve Springs
The package includes a complete set of 16 upgraded valve springs designed as direct replacements at the factory installed height.
-
Complete set of 16 valve springs
-
108–120 lbs seat pressure at factory installed height
-
Direct drop-in installation
-
Improved valve control for performance applications
-
Designed to complement the Stage 1 camshaft
Billet Pushrods
A complete set of upgraded billet pushrods provides additional strength and rigidity for the upgraded valvetrain.
-
Billet construction
-
10.250" length
-
Increased strength over factory-style components
-
Designed for use with upgraded valve springs and performance camshafts
Heavy-Duty Lifters
The package also includes a complete set of 16 heavy-duty lifters for a comprehensive valvetrain upgrade.
The upgraded lifters are designed to provide reliable operation in both street and performance applications.

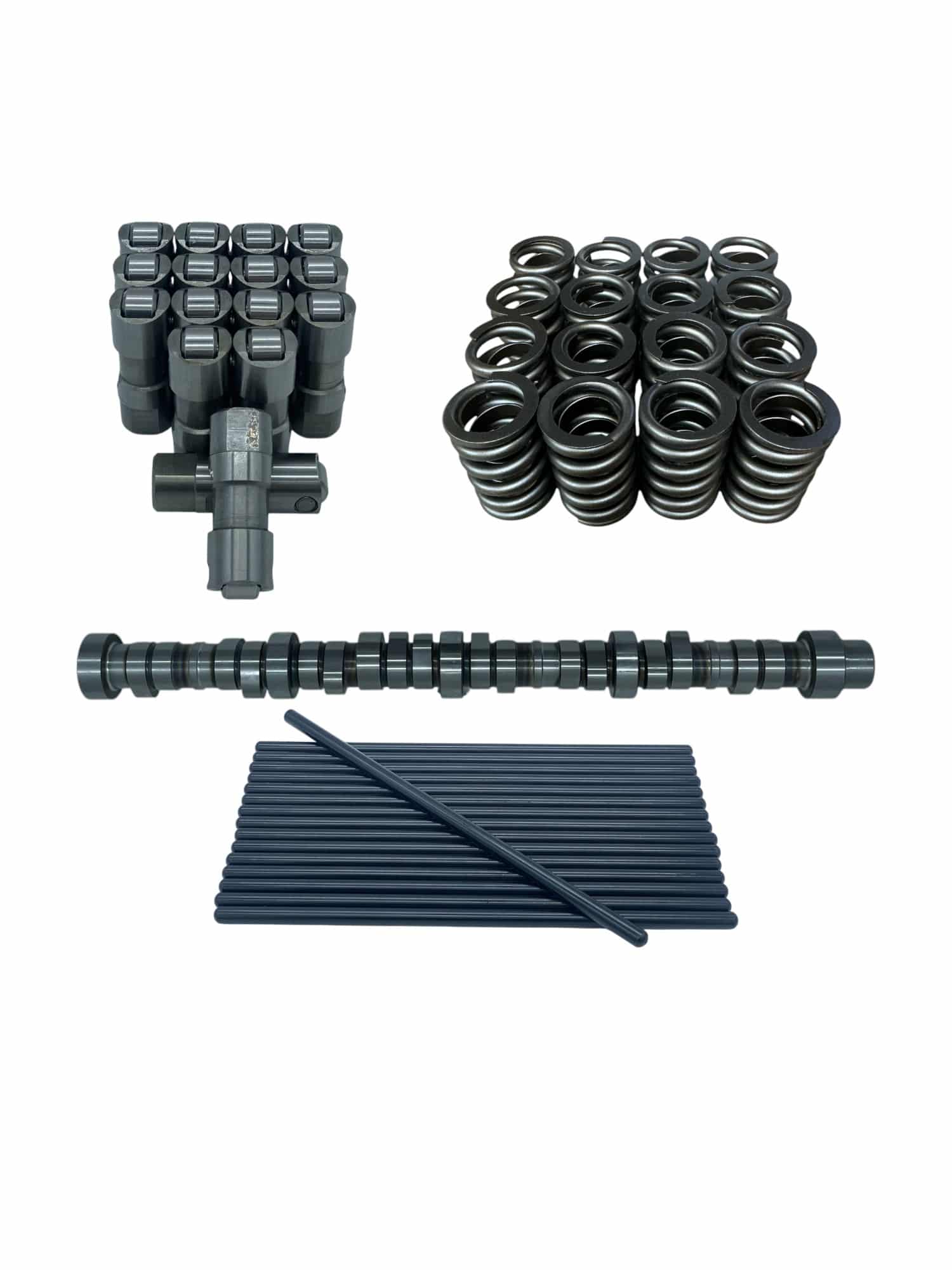

Complete Package Includes
-
Stage 1 4130 billet camshaft
-
Set of 16 high-rev valve springs
-
Complete set of billet pushrods
-
Set of 16 heavy-duty lifters
Piston-to-Valve Clearance
The Stage 1 camshaft is designed as a direct drop-in application and does not normally require fly-cut pistons.
However, piston-to-valve clearance should always be verified during engine assembly. Cylinder head machining, block machining, gasket thickness, piston configuration, and other engine modifications can affect available clearance.
OBS Fuel System Notice
1994–1997 OBS 7.3L Powerstroke trucks require an electric fuel pump conversion.
The Stage 1 billet camshaft does not have the eccentric lobe required to operate the factory mechanical fuel pump. An electric fuel system such as an AirDog, FASS, or equivalent setup will be required.
Key Features
-
Complete Stage 1 7.3L Powerstroke valvetrain package
-
4130 billet steel camshaft
-
186° intake / 195° exhaust duration
-
.430" intake / .433" exhaust lift
-
16 upgraded high-rev valve springs
-
108–120 lbs spring pressure at factory installed height
-
Billet 10.250" pushrods
-
Complete set of 16 heavy-duty lifters
-
Designed for improved torque and horsepower
-
Compatible with factory and aftermarket tuning
-
Excellent for street, towing, and performance builds
-
Direct drop-in design for the intended application
-
Lifetime replacement warranty on the camshaft
For 7.3L Powerstroke owners looking for a complete valvetrain upgrade without moving to an aggressive competition-oriented combination, the Stage 1 Valvetrain Package provides a well-matched combination of camshaft, springs, pushrods, and lifters designed for improved performance and long-term reliability.
Professional installation is recommended. Always verify piston-to-valve clearance and all other critical valvetrain clearances during assembly.
