7.3L Powerstroke Stage 1 Billet Cam, Pushrods & HD Lifter Kit

Complete Stage 1 Camshaft Upgrade for Street & Performance 7.3L Powerstroke Builds

Upgrade your 7.3L Ford Powerstroke valvetrain with the Stage 1 Billet Camshaft Kit, complete with one-piece billet pushrods and a full set of heavy-duty lifters.

Designed for street-driven and performance 7.3L Powerstroke applications, the Stage 1 camshaft features optimized valve timing with increased lift and duration to improve airflow, torque, horsepower, turbo response, and overall engine efficiency while maintaining excellent street manners.

Stage 1 Billet Camshaft

The Stage 1 camshaft is manufactured from high-grade USA 4130 billet steel for strength and durability.

Its performance-oriented profile is designed to provide noticeable improvements without moving to an overly aggressive camshaft for a street-driven truck.

Camshaft Specifications:

• Duration: 186° Intake / 195° Exhaust

• Valve Lift: .430" Intake / .433" Exhaust

• Lobe Center Line: 107°

• High-grade USA 4130 billet steel

• Designed for street and performance applications

• Compatible with factory and aftermarket tuning

• Lifetime replacement warranty

One-Piece Billet Pushrods

The kit includes a complete set of upgraded one-piece billet pushrods designed to provide additional strength and rigidity for performance valvetrain applications.

• One-piece billet construction

• 10.250" length

• Increased strength and rigidity

• Designed for use with performance camshafts and upgraded valvetrain components

Heavy-Duty Lifters

Also included is a complete set of 16 heavy-duty lifters, providing the components needed to properly complement the upgraded camshaft and pushrods.

• Complete set of 16 lifters

• Heavy-duty construction

• Designed for street and performance applications

• Ideal for complete engine rebuilds and valvetrain upgrades

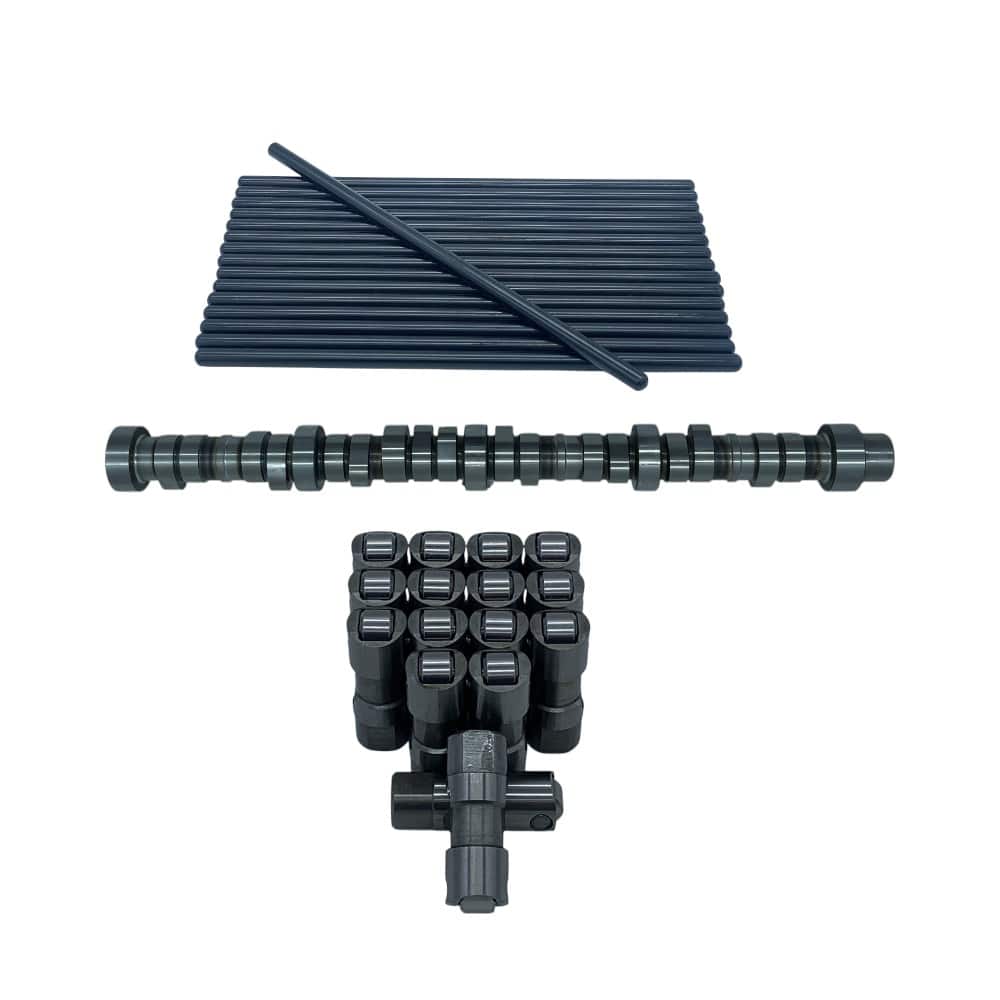

Complete Kit Includes

• Stage 1 4130 billet camshaft

• Complete set of one-piece billet pushrods

• Pushrod Length: 10.250"

• Complete set of 16 heavy-duty lifters

Performance Benefits

The Stage 1 camshaft profile is designed to provide improvements in:

• Low- and mid-range torque

• Horsepower

• Turbo response

• Engine efficiency

• Overall powerband

• Street performance

Its mild performance profile makes it an excellent option for daily-driven, towing, and street-performance 7.3L Powerstroke builds.

Piston-to-Valve Clearance

The Stage 1 camshaft is designed as a drop-in application that does not normally require fly-cut pistons.

However, piston-to-valve clearance should always be verified during engine assembly. Cylinder head machining, block machining, head gasket thickness, piston configuration, and other engine modifications can affect available clearance.

OBS Fuel System Notice

1994–1997 OBS 7.3L Powerstroke trucks require an electric fuel pump conversion.

This camshaft does not have the mechanical fuel pump eccentric lobe required to operate the factory mechanical fuel pump.

OBS applications will require an electric fuel system such as an AirDog, FASS, or equivalent electric fuel pump setup.

Tuning Compatibility

The Stage 1 camshaft is compatible with:

• Factory tuning

• Aftermarket tuning

• Custom performance tuning

Key Features

• Stage 1 performance camshaft

• High-grade USA 4130 billet steel

• 186° intake / 195° exhaust duration

• .430" intake / .433" exhaust valve lift

• 107° lobe center line

• One-piece billet 10.250" pushrods included

• Complete set of 16 heavy-duty lifters included

• Designed for improved torque and horsepower

• Excellent street and daily-driving characteristics

• Compatible with factory and aftermarket tunes

• Drop-in design for the intended application

• Lifetime replacement warranty on camshaft

For 7.3L Powerstroke owners looking for more than just a replacement camshaft, this Stage 1 Billet Cam, Pushrod & HD Lifter Kit provides a complete performance-focused valvetrain upgrade designed to deliver improved power and response while maintaining the drivability needed for a street-driven truck.

Professional installation is recommended. Always verify piston-to-valve clearance and all other critical valvetrain clearances during assembly.
