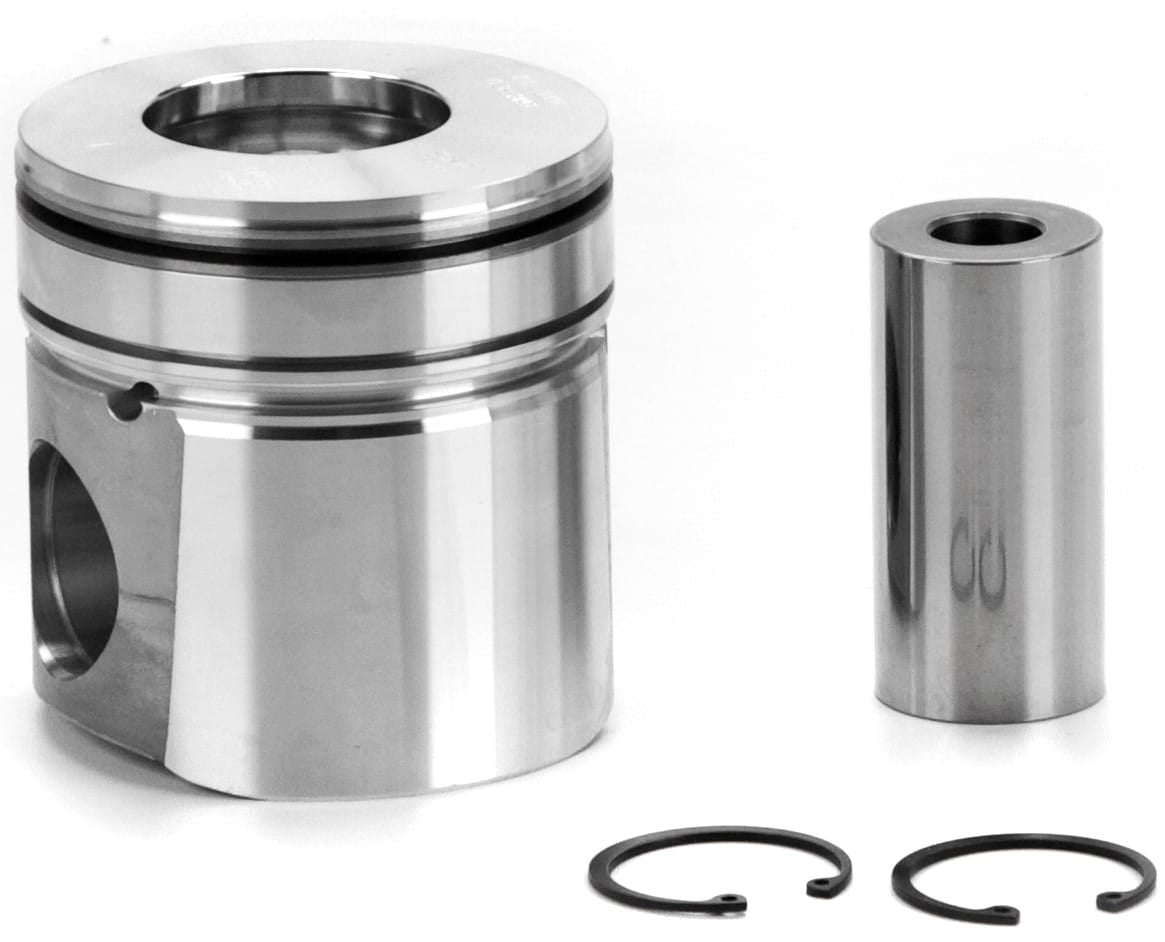

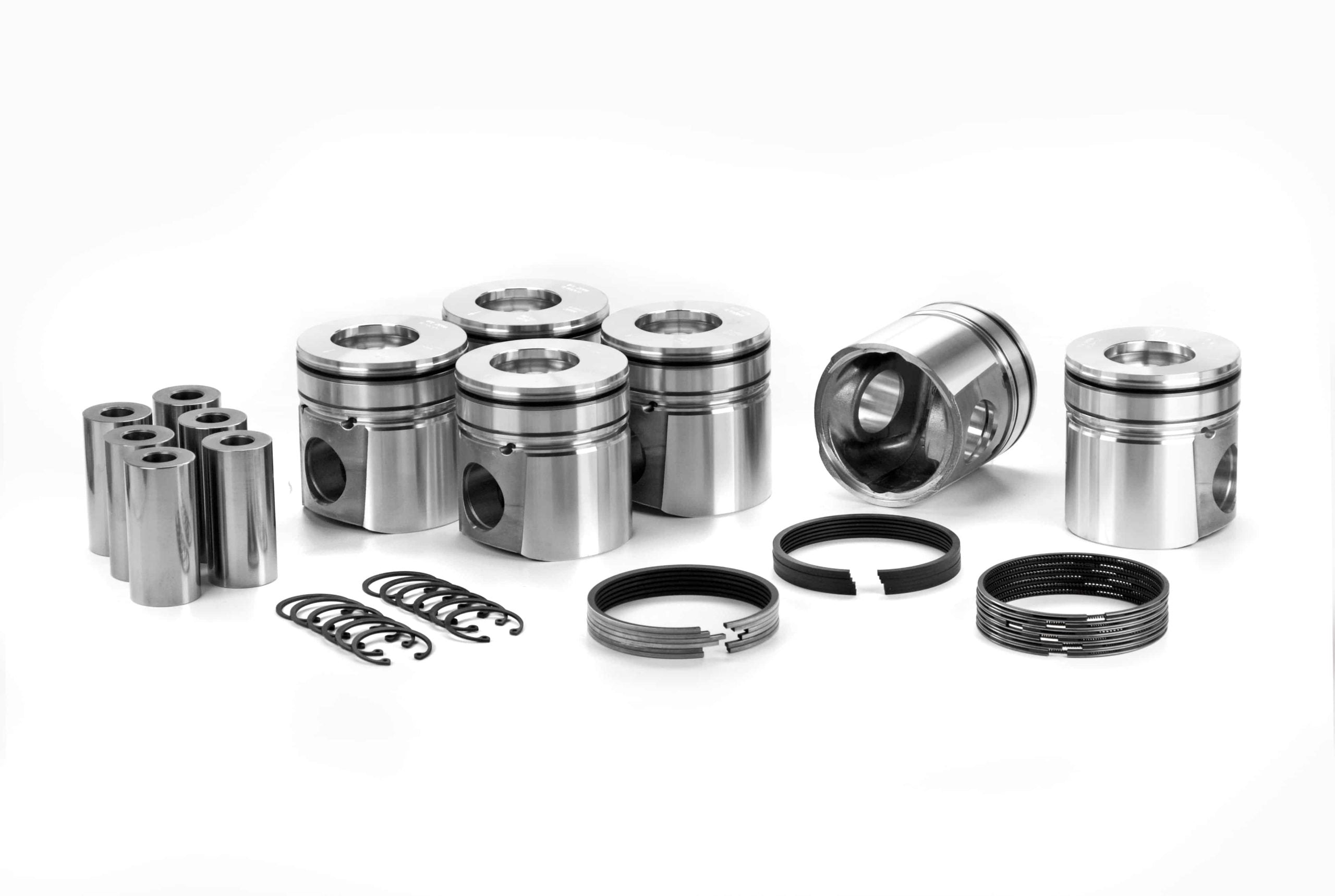

1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit

1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit

$649.99
$649.99
Skip to product information
1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit
  • 1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit
  • 1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit
  • 1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit
  • 1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit
  • 1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit
  • 1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit
1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit

1994-1998 Dodge 5.9L 12v Cummins DUALOY Piston Kit

$649.99
$649.99
Dualoy Diesel pistons are cast and machined in-house to maintain the highest level of quality and consistency. Available for most popular diesel light and medium-duty truck applications, and engine codes. All Dualoy pistons feature a high strength top ring carrier to improve strength of the top land, and resistance to the extreme heat of diesel engines. Oil cooling galleries are cast into the pistons, as required depending on the specific application. \n

\n \n \n \n \n \n \n \n \n \n \n
\n

Product Specifications

\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Sold AsPiston Set with Rings
Engine ManufacturerDodge
Engine FamilyCummins
Eng. Disp. In.369
Eng. Disp Liters5.9
Year Range1994-1998
Vin CodeD
Oe Assembly3802493
Bore (in)4.015
Bore (mm)102
Stroke (in)4.724
Stroke (mm)120.0
OversizedNo
\n		 \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
OversizeSTD, .50 .100
Ring Pack3.0K, 2.35mm, 4.0mm
Top Land.318
Pin Number7195D-PP
Pin TypeFloating
Pin Diameter (in)1.575
Pin Diameter (mm)40.0
Compression Height IN2.818
Compression Height MM71.6
Crown (cc)+44.2cc
Alloy332
Compression Ratio17.5
\n
