7.3L Powerstroke Stage 1 Beehive Spring Valvetrain Kit – 1994–2003
Complete Performance Valvetrain Upgrade for Your 7.3L Powerstroke

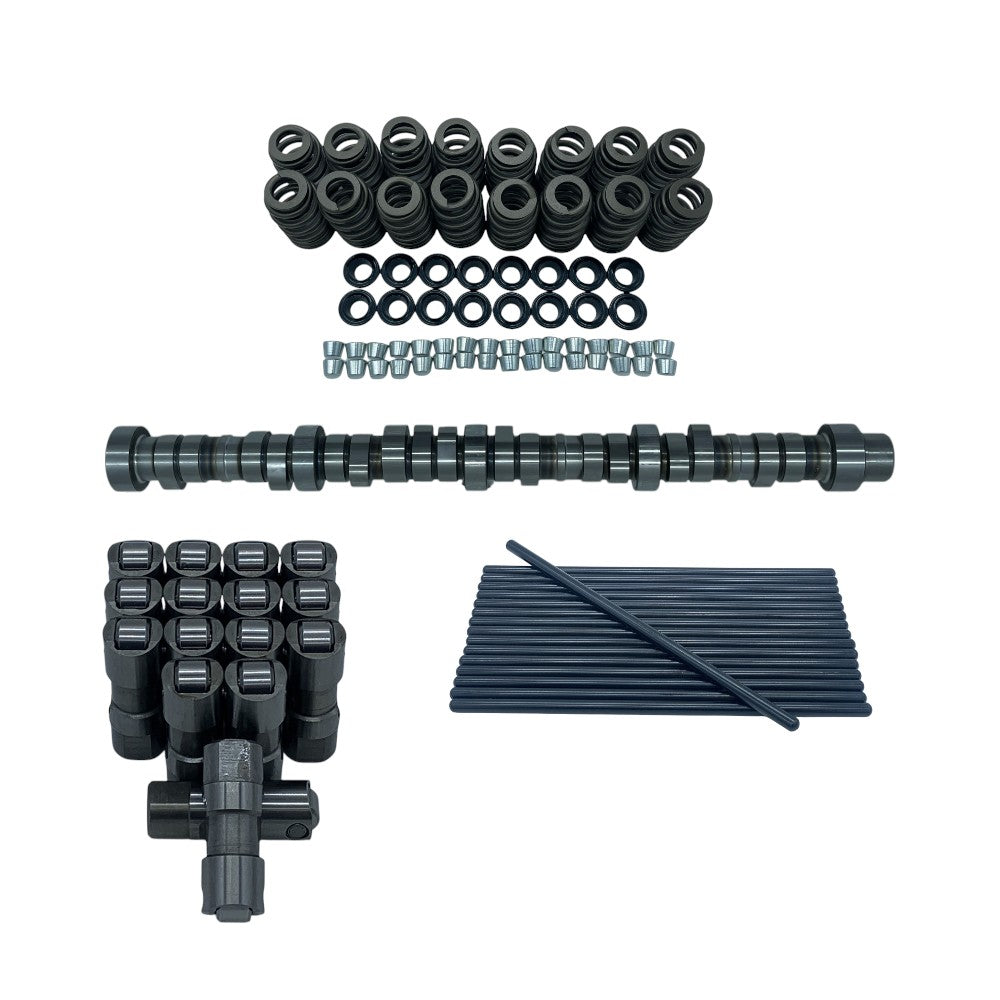

Upgrade your 1994–2003 Ford 7.3L Powerstroke with a complete Stage 1 Beehive Spring Valvetrain Kit designed to improve performance, valvetrain stability, and durability. This package combines a Stage 1 performance camshaft, beehive valve springs, heavy-duty pushrods, and lifters into one complete valvetrain upgrade.
Whether you're building a performance street truck, tow rig, or completely rebuilding your 7.3L, this kit provides the components needed for a stronger and more capable valvetrain.
Kit Includes
Stage 1 Performance Camshaft
Designed specifically for the 7.3L Powerstroke with optimized valve timing for improved engine performance and response.
Camshaft Specs:
-
Duration: 186° Intake / 195° Exhaust
-
Valve Lift: .430" Intake / .433" Exhaust
-
Lobe Center Line: 107°
-
Compatible with factory and aftermarket tuning
Beehive Valve Spring Kit
The beehive spring design provides increased valvetrain stability while reducing spring and retainer mass. This helps maintain better valve control, particularly in performance applications and at increased engine RPM.
Heavy-Duty Pushrods
-
3/8" diameter
-
.080" wall thickness
-
Designed for increased strength and rigidity
-
Built to withstand increased valvetrain loads
16 Heavy-Duty Lifters
A complete set of 16 heavy-duty lifters designed for reliable operation in stock and performance 7.3L Powerstroke applications.
Important Installation Information
1994–1997 OBS Trucks:
An electric fuel pump conversion is required. This camshaft does not have the eccentric lobe required to operate the factory mechanical fuel pump.
Piston-to-Valve Clearance:
Fly-cut pistons are not typically required with this camshaft; however, piston-to-valve clearance should always be checked during assembly. Engine machining, cylinder head work, gasket thickness, piston configuration, and other modifications can affect available clearance.
Tuning:
This camshaft is compatible with both factory and aftermarket tuning.
Key Features
-
Fits 1994–2003 Ford 7.3L Powerstroke
-
Complete Stage 1 valvetrain package
-
Stage 1 performance camshaft
-
Beehive valve spring kit
-
Heavy-duty 3/8" .080-wall pushrods
-
Complete set of 16 heavy-duty lifters
-
Improved valvetrain stability
-
Increased strength for performance applications
-
Suitable for street, towing, and performance builds
-
Compatible with factory and aftermarket tuning
-
Excellent choice for complete engine rebuilds and performance upgrades
Give your 7.3L Powerstroke a complete valvetrain upgrade with a matched Stage 1 package designed to deliver the strength, stability, and performance needed for a serious diesel build.
Professional installation is recommended. Always verify piston-to-valve clearance and other critical engine clearances during assembly.
