7.3L Powerstroke Stage 2 Beehive Spring Valvetrain Kit – 1994–2003
Complete Stage 2 Performance Valvetrain Upgrade
Take your 1994–2003 Ford 7.3L Powerstroke build to the next level with the Stage 2 Beehive Spring Valvetrain Kit. Designed for more aggressive performance applications, this complete package combines a Stage 2 camshaft, beehive valve springs, heavy-duty pushrods, and lifters for increased performance, valvetrain stability, and durability.
Whether you're building a high-performance street truck, competition setup, or a heavily modified 7.3L, this kit provides the components needed for a stronger and more capable valvetrain.

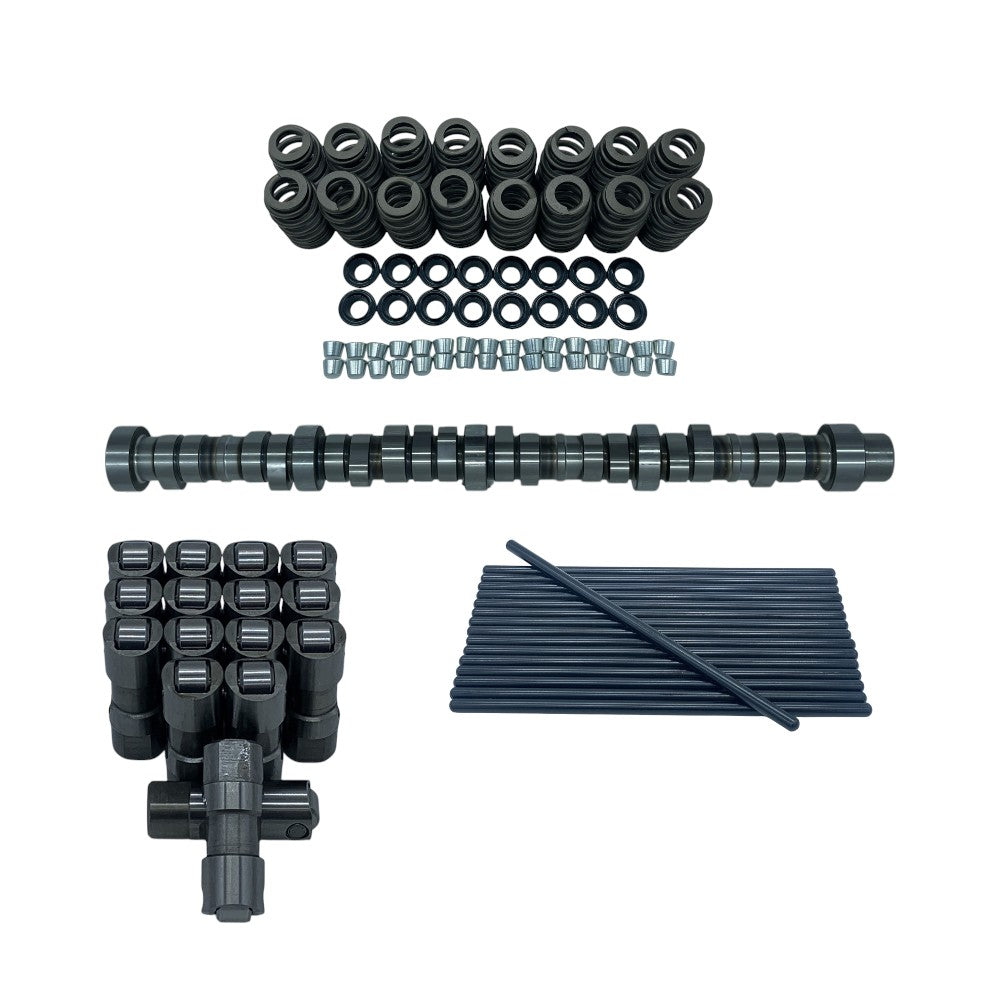

Kit Includes
Stage 2 Performance Camshaft
The Stage 2 camshaft features a more aggressive profile designed to improve airflow and performance while supporting higher-performance engine combinations.
Camshaft Specs:
-
Duration: 190° Intake / 200° Exhaust
-
Valve Lift: .430" Intake / .438" Exhaust
-
Lobe Center Line: 107°
Beehive Valve Spring Kit
The beehive spring design provides improved valvetrain stability and valve control while reducing spring and retainer mass. This makes them well suited for performance applications where increased engine RPM and more aggressive valve motion place additional demands on the valvetrain.
Heavy-Duty Pushrods
-
3/8" diameter
-
.080" wall thickness
-
Increased strength and rigidity
-
Designed for demanding performance applications
-
Built to handle increased valvetrain loads
16 Heavy-Duty Lifters
A complete set of 16 heavy-duty lifters designed to provide consistent and reliable operation in demanding 7.3L Powerstroke applications.
Important Installation Information
1994–1997 OBS Trucks:
An electric fuel pump conversion is required. This camshaft does not have the eccentric lobe required to operate the factory mechanical fuel pump.
Piston-to-Valve Clearance:
Fly-cut pistons are not typically required; however, piston-to-valve clearance must always be checked during engine assembly. Cylinder head machining, block machining, gasket thickness, piston configuration, and other engine modifications can affect available clearance.
Key Features
-
Fits 1994–2003 Ford 7.3L Powerstroke
-
Complete Stage 2 valvetrain upgrade
-
Stage 2 performance camshaft
-
190°/200° duration
-
.430"/.438" valve lift
-
107° lobe center line
-
Beehive valve spring kit
-
Improved valve control at increased RPM
-
Heavy-duty 3/8" .080-wall pushrods
-
Complete set of 16 heavy-duty lifters
-
Increased valvetrain strength and stability
-
Designed for more aggressive performance builds
-
Excellent choice for modified street and competition applications
For builders looking to move beyond a mild valvetrain upgrade, the Stage 2 Beehive Spring Valvetrain Kit provides a more aggressive camshaft profile backed by upgraded springs, pushrods, and lifters for a complete performance-focused package.
Professional installation is recommended. Always verify piston-to-valve clearance and all other critical engine clearances during assembly.
