GM Duramax LMM/LLY 2006-2010 DUALOY Piston Kit

GM Duramax LMM/LLY 2006-2010 DUALOY Piston Kit

$979.00
Sale price  $979.00 Regular price
Skip to product information
GM Duramax LMM/LLY 2006-2010 DUALOY Piston Kit

GM Duramax LMM/LLY 2006-2010 DUALOY Piston Kit

$979.00
Sale price  $979.00 Regular price

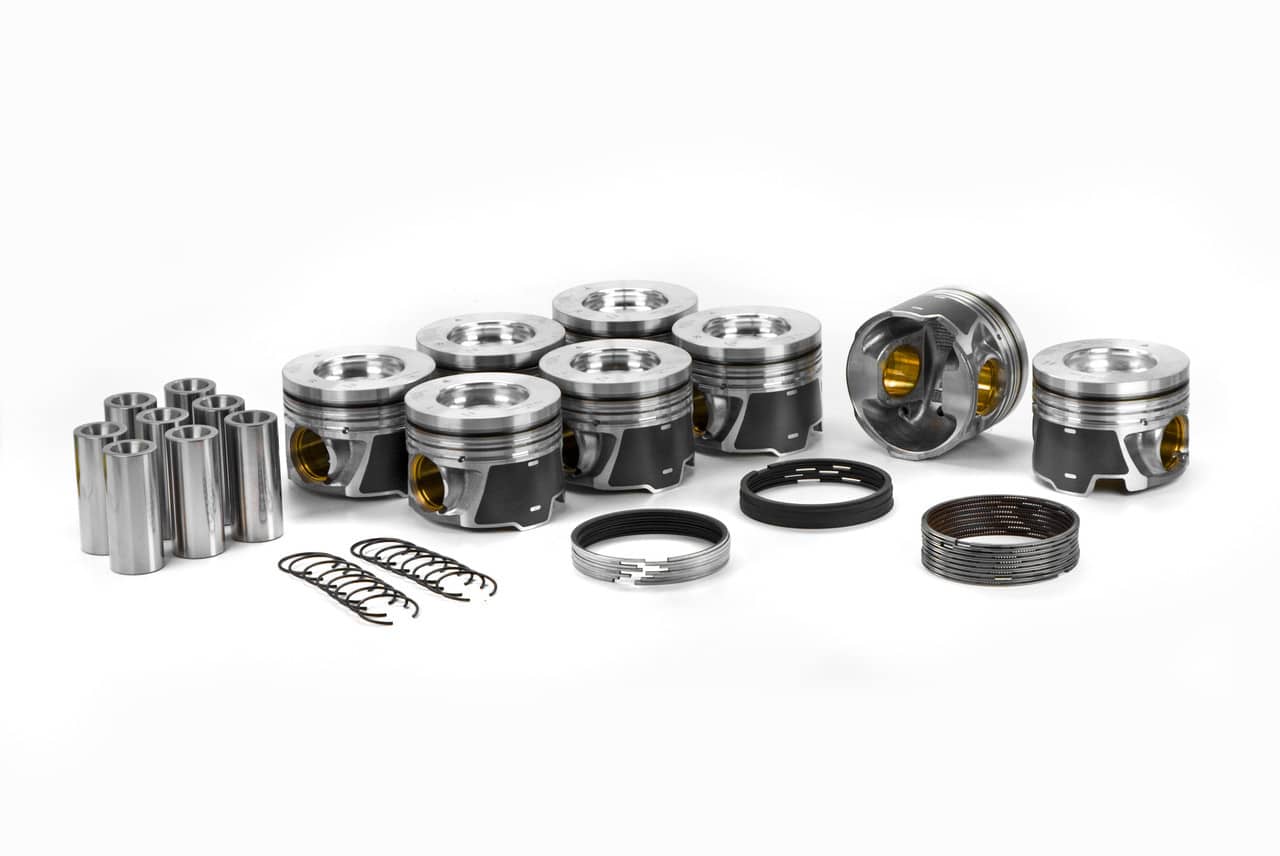

DUALOY Piston - GM Duramax LMM/LLY 2006-10 Kit w/PVD Rings STD-.50-.75-.100 \n \nSet includes 4 right and 4 left bank pistons. Iron ring insert in top groove. Keystone top ring. \n \nDualoy Diesel pistons are cast and machined in-house to maintain the highest level of quality and consistency. Available for most popular diesel light and medium-duty truck applications, and engine codes. All Dualoy pistons feature a high strength top ring carrier to improve strength of the top land, and resistance to the extreme heat of diesel engines. Oil cooling galleries are cast into the pistons, as required depending on the specific application. \n \n \n \n \n \n \n \n \n \n \n
\n

Product Specifications

\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Sold AsPiston Set with Rings
Engine ManufacturerGM
Engine FamilyLLY Duramax
Eng. Disp. In.403
Eng. Disp Liters6.6
Year Range2006-2010
Vin CodeD, 2, 6
Oe Assembly97374384-R, 97374385-L
Bore (in)4.055
Bore (mm)103
Stroke (in)3.898
Stroke (mm)99
OversizedYes
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
OversizeStd-.50-.75-.100
Ring PackPVD 3.0K, 2.0mm, 3.0mm
Top Land0.394
Pin Number7211D-PP
Pin TypeFloating
Pin Diameter (in)1.358
Pin Diameter (mm)34.5
Compression Height IN1.96
Compression Height MM49.8
Crown (cc)+40.4cc
Alloy332
Compression Ratio16.8:1
\n
