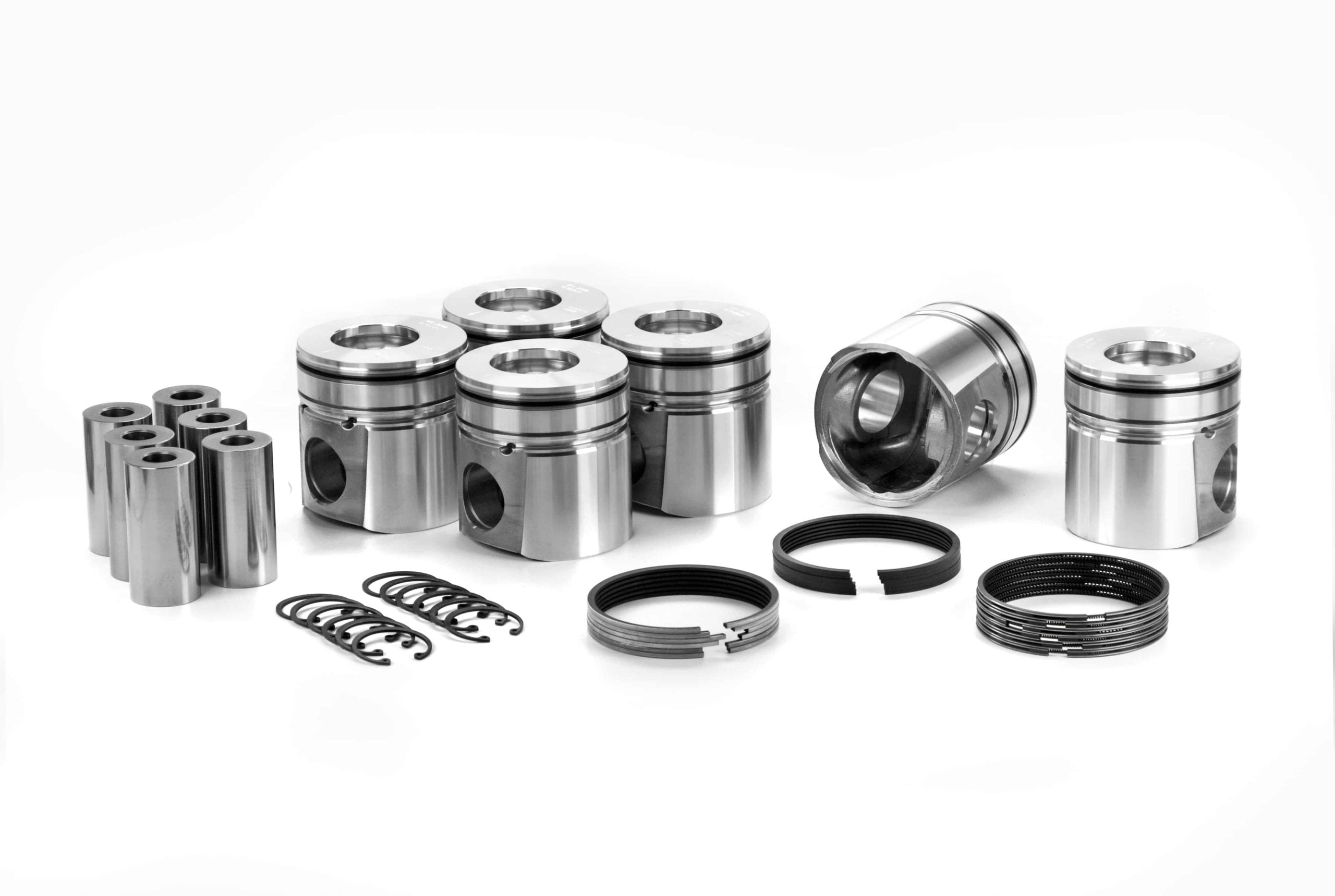

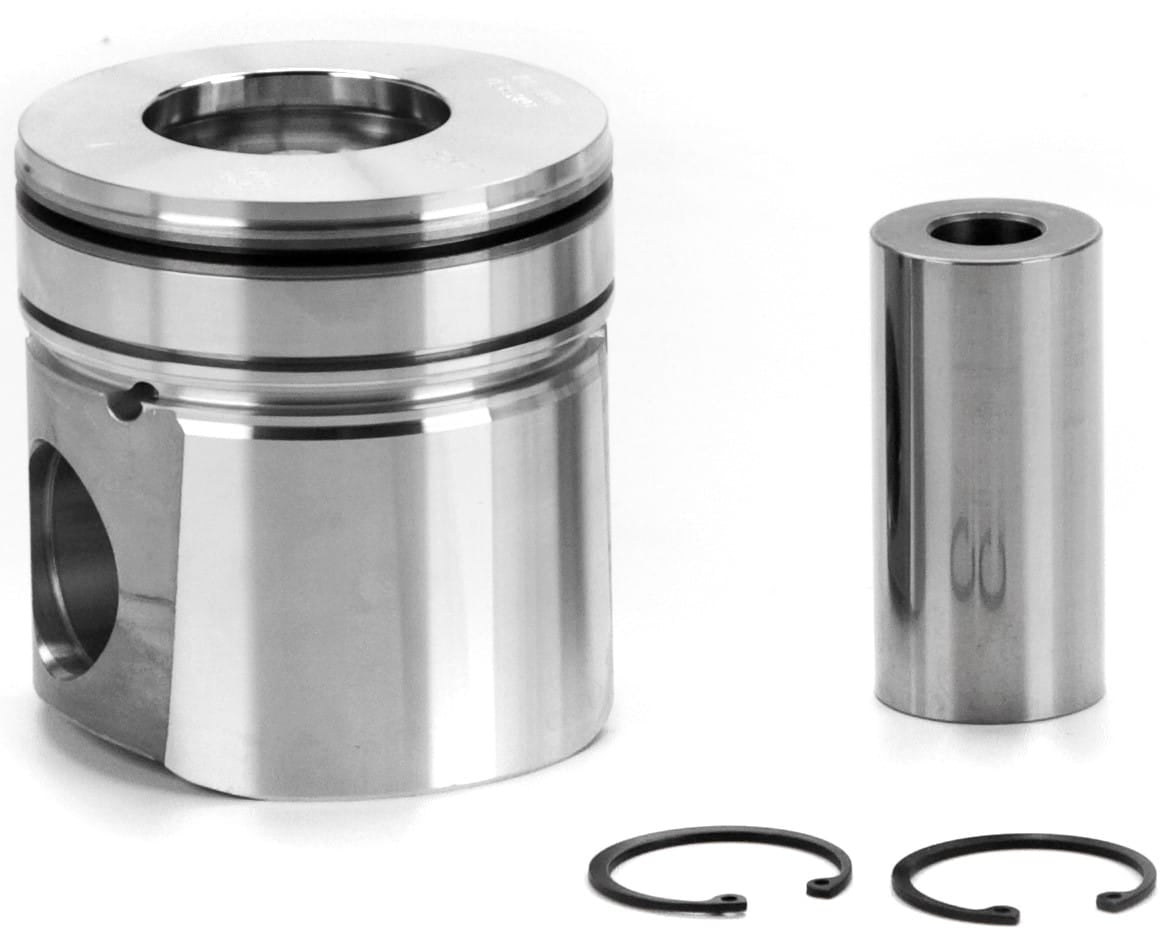

2005-2009 Dodge 5.9L Cummins ETH & HO DUALOY Piston Kit

24V-5.9L0407000

Quantity

$695.00

Shipping calculated at checkout

Available

Short videos

Description

Dualoy Diesel pistons are cast and machined in-house to maintain the highest level of quality and consistency. Available for most popular diesel light and medium-duty truck applications, and engine codes. All Dualoy pistons feature a high strength top ring carrier to improve strength of the top land, and resistance to the extreme heat of diesel engines. Oil cooling galleries are cast into the pistons, as required depending on the specific application. \n

Engine Model ETH and HO. Iron ring insert in top groove. Keystone top ring.

Dualoy Piston Dodge Cummins 5.9L 24V (L6) 2005-09

\n \n

\n \n \n \n \n \n \n \n \n \n

Product Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Sold As	Piston Set with Rings
Engine Manufacturer	Dodge
Engine Family	Cummins
Eng. Disp. In.	369
Eng. Disp Liters	5.9
Year Range	2005-2009
Oe Assembly	3970192
Bore (in)	4.015
Bore (mm)	102
Stroke (in)	4.724
Stroke (mm)	120
Oversized	Yes
Oversize	STD-.50-.100

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Ring Pack	3.0K, 2.39mm, 4.0mm
Top Land	.380
Pin Number	7195D-PP
Pin Type	Floating
Pin Diameter (in)	1.575
Pin Diameter (mm)	40.0
Lock	7195D-CP
Compression Height IN	2.809
Compression Height MM	71.3
Crown (cc)	+45.4cc
Alloy	332
Compression Ratio	17.1

2005-2009 Dodge 5.9L Cummins ETH & HO DUALOY Piston Kit

$695.00

Maximum Reliability
Heavy-Duty Overhaul Essentials

Stop risking your engine rebuild on inconsistent tolerances. Compare our in-house machined and heavy-duty spec parts against stock OEM to ensure your build holds up under load.
