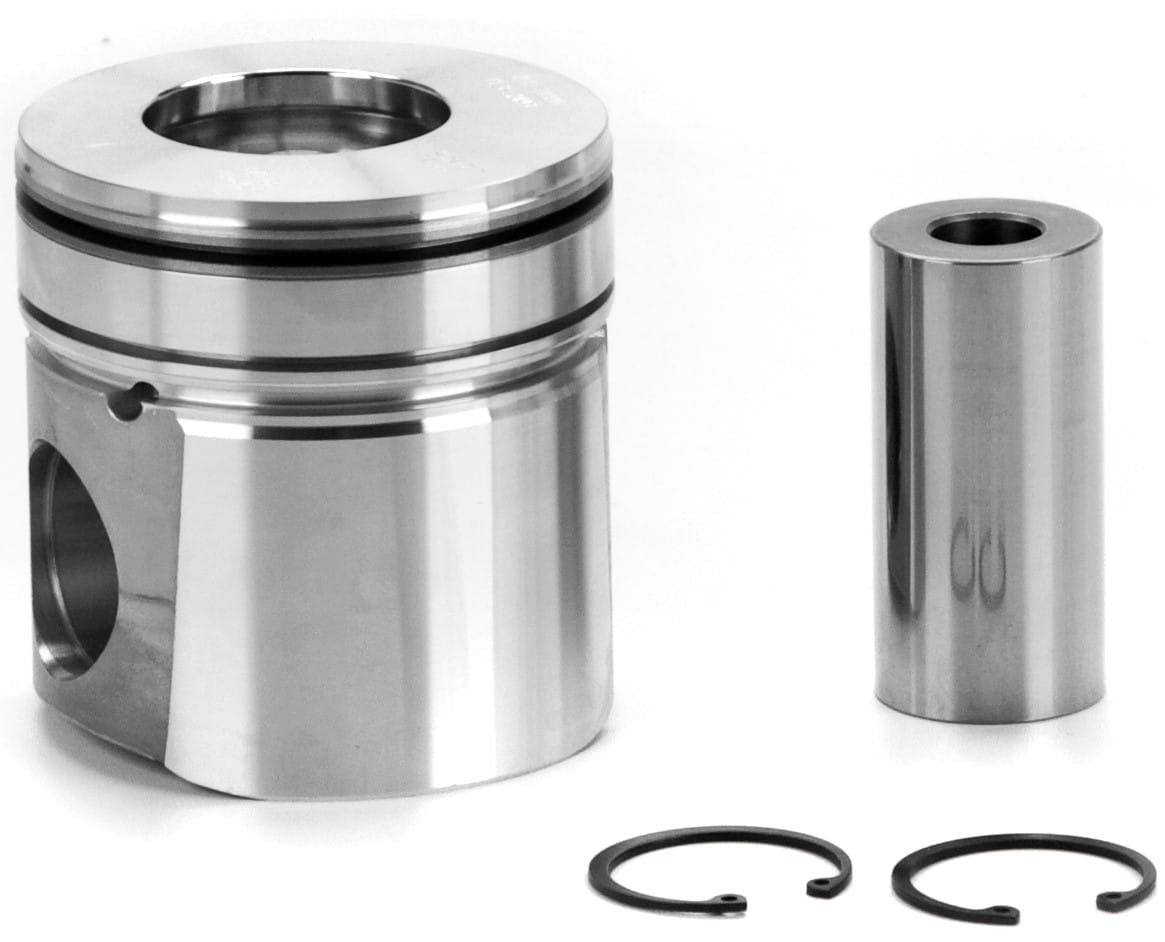

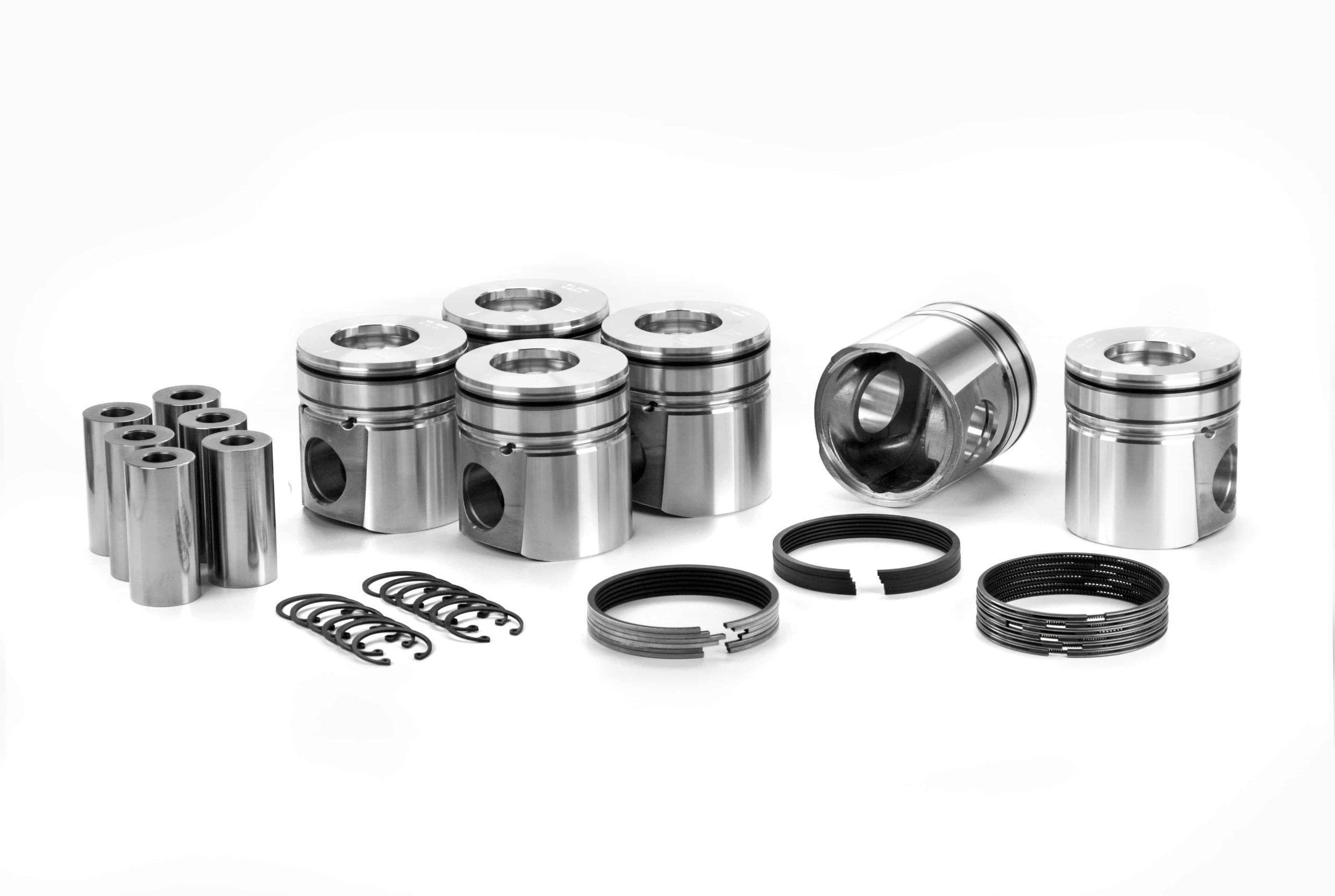

1998.5-2002 Dodge 5.9L 24V ISB Cummins DUALOY Piston Kit

1998.5-2002 Dodge 5.9L 24V ISB Cummins DUALOY Piston Kit

$699.99
Sale price  $699.99 Regular price
Dualoy Diesel pistons are cast and machined in-house to maintain the highest level of quality and consistency. Available for most popular diesel light and medium-duty truck applications, and engine codes. All Dualoy pistons feature a high strength top ring carrier to improve strength of the top land, and resistance to the extreme heat of diesel engines. Oil cooling galleries are cast into the pistons, as required depending on the specific application. \n \n \n \n \n \n \n \n \n \n \n
\n

Product Specifications

\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
Sold AsPiston Set with Rings
Engine ManufacturerDodge
Engine FamilyCummins
Eng. Disp. In.369
Eng. Disp Liters5.9
Year Range1998.5-2002
Vin Code6
Oe Assembly3946153
Bore (in)4.015
Bore (mm)102
Stroke (in)4.724
Stroke (mm)120.0
OversizedNo
\n
\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n
OversizeSTD -.50-.100
Ring Pack3.0K, 2.35mm, 4.0mm
Top Land.405
Pin Number7195D-PP
Pin TypeFloating
Pin Diameter (in)1.575
Pin Diameter (mm)40.0
Compression Height IN2.818
Compression Height MM71.6
Crown (cc)+47.2cc
Alloy332
Compression Ratio17.2
